Solutions: Legacy System DCS Retrofit (Scenario 03)
This section explores how to apply data-centric security to a specific legacy application: the NATO Joint Logistics Tracking System (JLTS), a COBOL/DB2 application that has been in continuous operation since 2004.
The legacy application
- JLTS Application Profile -- Detailed description of the legacy application, its architecture, data model, and operational context
DCS retrofit components
The retrofit is broken into six components. The first four handle labeling and access control (DCS Levels 1 and 2). The last two add cryptographic protection (DCS Level 3). Each addresses a different aspect of the DCS challenge:
- Option 1: Shadow Label Store -- DB2 metadata tables holding classification labels for all JLTS records (DCS Level 1 foundation)
- Option 2: User Attribute Store -- Security attributes (clearance, nationality, SAPs) mapped to RACF user IDs (DCS Level 2 prerequisite)
- Option 3: TN3270 Security Proxy -- Protocol-aware proxy that filters 3270 screens based on labels and user attributes (DCS Level 2 enforcement for interactive access)
- Option 4: Batch and Export Gateway -- Filtering and STANAG 4778 assured labeling for outbound data feeds and reports (DCS Level 1 assured + Level 2 for batch data)
- Option 5: TDF Encryption on Export -- TDF-wrapping outbound data with ABAC policies for cryptographic protection in transit and at rest on receiving systems (DCS Level 3 for exports)
- Option 6: Encrypted Data Mirror -- Off-mainframe TDF-encrypted replica of JLTS data for compliance, DR, cloud migration, and cross-domain sharing (DCS Level 3 at rest)
Dependency map

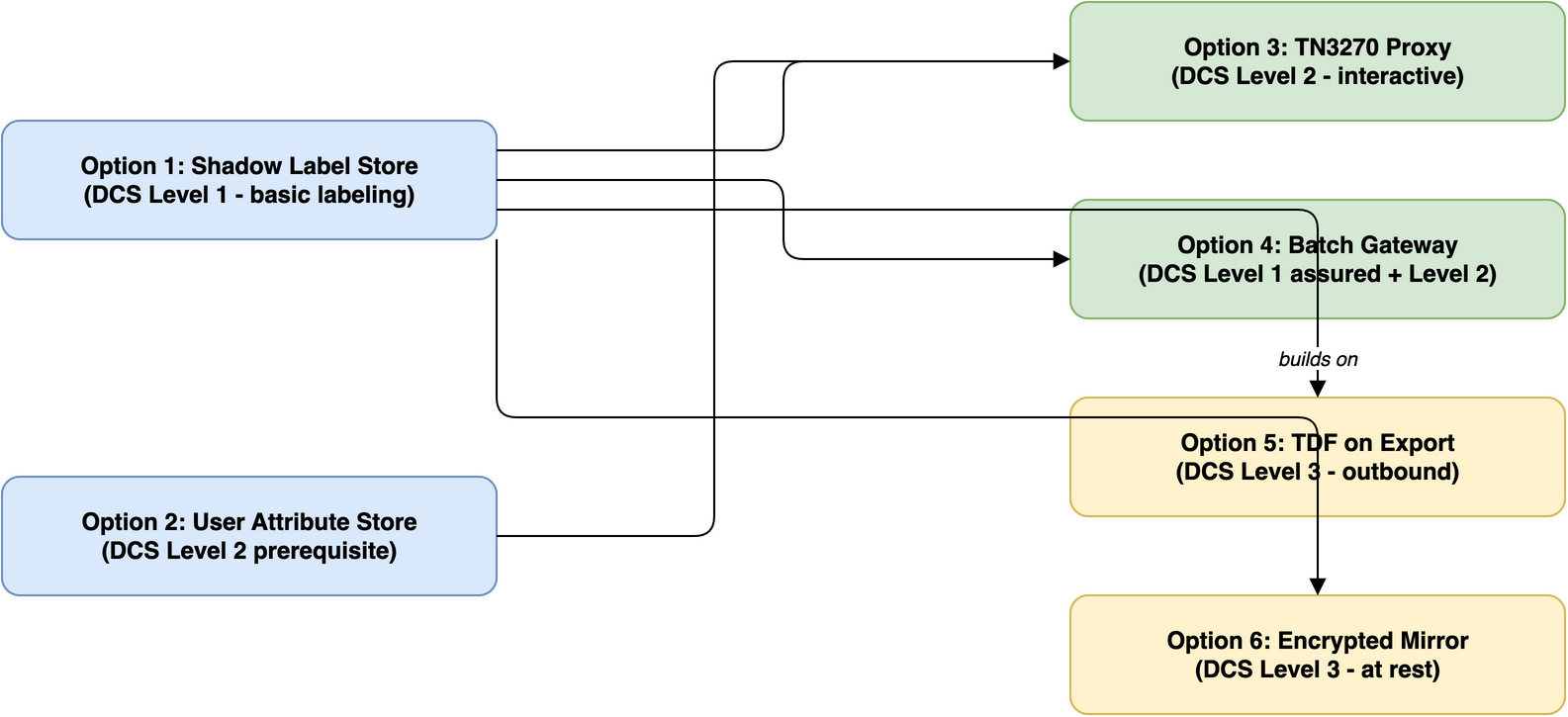

Options 1 and 2 can be built in parallel. Option 3 depends on both. Option 4 depends on Option 1. Option 5 builds on Option 4. Option 6 depends on Option 1 and can be built independently of Options 3-5.
Coverage summary
| Component | What it protects | DCS Level |
|---|---|---|
| Option 1: Shadow labels | Nothing (labels only) | Level 1 (basic) |
| Option 2: User attributes | Nothing (attributes only) | Level 2 prerequisite |
| Option 3: TN3270 proxy | Interactive access | Level 2 |
| Option 4: Export gateway | Outbound batch data | Level 1 (assured) + Level 2 |
| Option 5: TDF on export | Outbound batch data | Level 3 |
| Option 6: Encrypted mirror | Data at rest (replica) | Level 3 |
The live DB2 database remains the one gap -- protected by Level 2 access control (the proxy) but not Level 3 encryption. That's the trade-off of retrofitting a system that can't be rewritten.
Supporting material
- Classification Engine Context -- Context document for a focused discussion on how to automatically classify and label JLTS data (the "how do we determine the correct label?" problem)
