Lab 3: Encryption (DCS Level 3)

What's the problem?

In Labs 1 and 2, the data sitting in S3 is plaintext. Anyone with S3 access -- an admin, a compromised credential, a misconfigured bucket policy -- can read everything. The labels are there, the policy engine checks access, but the data itself is wide open to anyone who bypasses the application layer.

DCS Level 3 fixes this. The data is encrypted before it ever reaches S3. The encryption key is wrapped by KMS and can only be unwrapped by a Key Access Server (KAS) that checks the user's attributes against the data's policy first. No one -- not a cloud administrator, not an insider with privileged access, not a compromised service account -- can read the data without passing the KAS policy check.

What you'll build

We'll deploy the OpenTDF platform as a single container and connect it to the Cognito user pools and a KMS key:

  1. OpenTDF platform running as an ECS Fargate task, the Key Access Server that controls who can decrypt what
  2. AWS KMS as the root key store, hardware-backed keys that wrap the data encryption keys
  3. Cognito (from Lab 2) as the identity provider, authenticates users and asserts their attributes
  4. OpenTDF CLI on your workstation, encrypts and decrypts TDF files locally

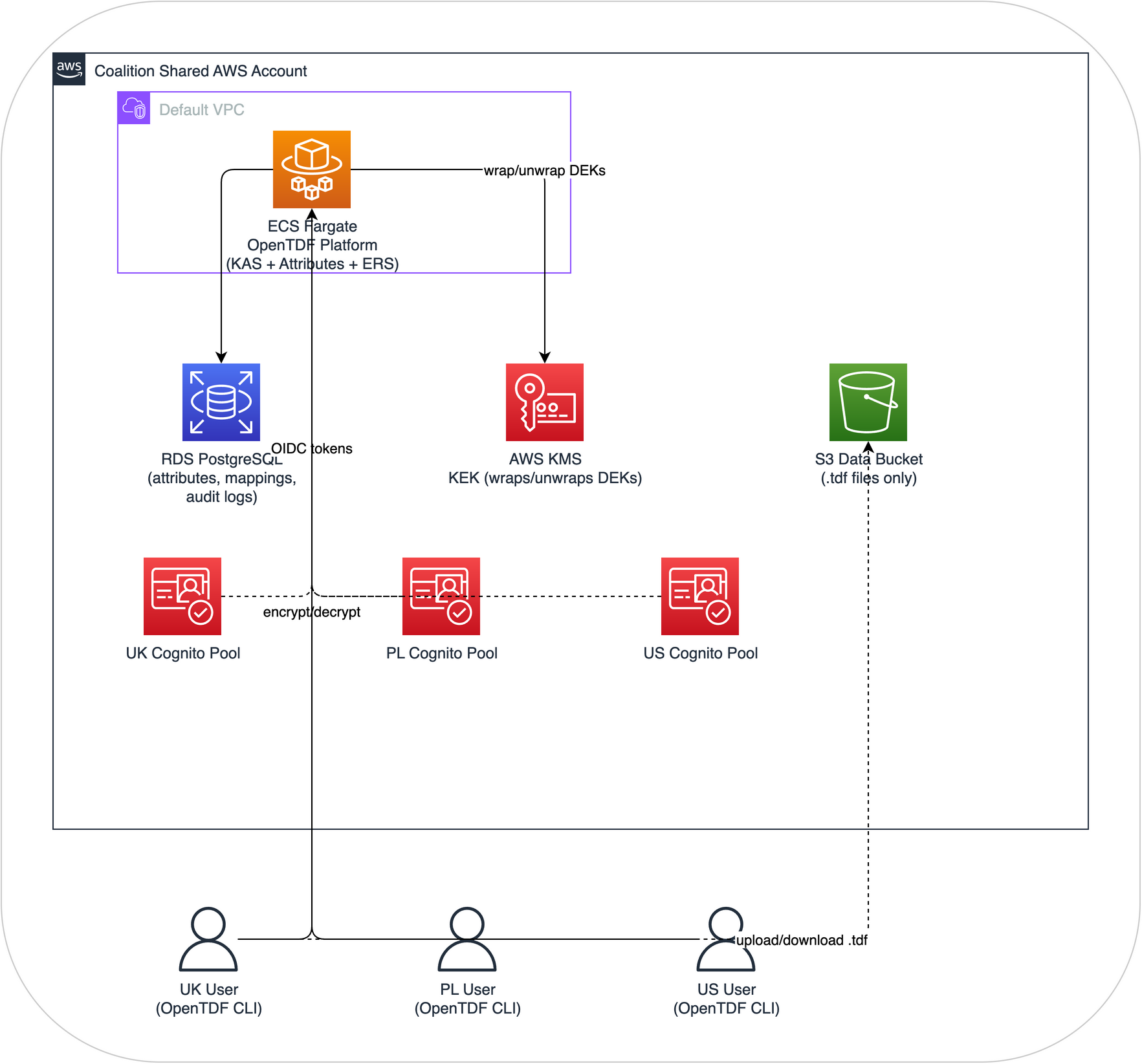

Lab 3 Architecture

What you'll learn

  • How TDF wraps data with encryption and an embedded access policy
  • How a Key Access Server enforces policies at decryption time (not storage time)
  • How Cognito tokens carry user attributes that the KAS evaluates
  • How KMS provides hardware-backed key management with full CloudTrail audit
  • Why this is fundamentally different from Labs 1 and 2: the data protects itself

What's different from Labs 1 and 2

Aspect Lab 1 Lab 2 Lab 3
Can S3 admin read data? Yes Yes No
Can a privileged insider read data? Yes Yes No (would need to also compromise KAS)
Protection after data is copied? No No Yes
Labels bound to data? No (advisory tags) No (S3 tags) Yes (cryptographic binding in TDF)
Policy enforced by Nothing Verified Permissions KAS at decryption time

Before you start

  • Completed Labs 1 and 2 (you need the S3 bucket, Cognito user pools, and test users)
  • AWS Console access with admin permissions
  • Same region as previous labs
  • About 45 minutes

Cost

This lab runs an ECS Fargate task and a small RDS instance. Budget roughly $1-2/day. Make sure to clean up when you're done (see the Wrap-Up section).

Concepts for this lab

  • Data Encryption Key (DEK): A unique AES-256 key generated for each piece of data. The DEK encrypts the actual content.

  • Key Encryption Key (KEK): An AWS KMS key that wraps (encrypts) the DEK. The KEK never leaves the KMS hardware module.

  • Wrapped DEK: The DEK encrypted by the KEK. Stored in the TDF file alongside the encrypted data. Useless without KAS authorization to unwrap it.

  • TDF file: A ZIP archive containing the encrypted payload and a manifest with the wrapped DEK, access policy, and security labels.

  • Key Access Server (KAS): The gatekeeper. Receives a user's OIDC token and a wrapped DEK, checks the user's attributes against the data's policy, and only releases the unwrapped DEK if the policy is satisfied.

Let's build it. Step 1: Create the Key Store
